Media Library / Images

FWS composite hoses / hose assemblies

Type FWS PP with female threaded fitting, Type FWS PTFE with stainless steel flange

ZVA Slimline 2

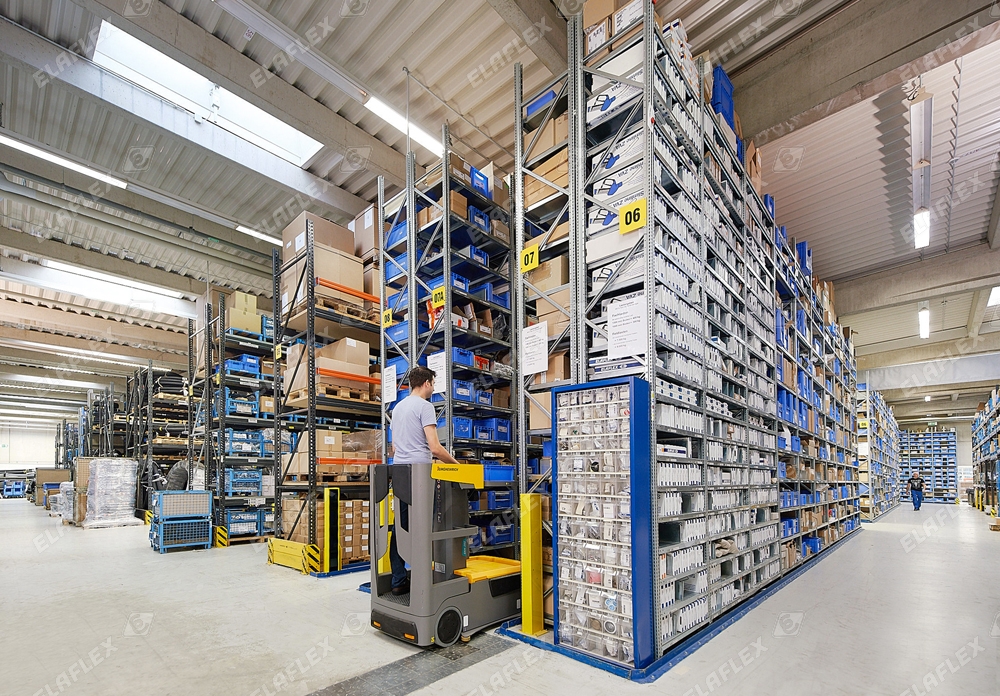

ELAFLEX Hamburg, stock

GW-G, FGN 4" SS, RS 4" x 3" SS, MK 80 SS

f. fire brigade dangerous goods equipment trucks

UTL 50 universal chemical hose assembly with KSS anti-kinking-spiral

and DDC Dry Disconnect Coupling

Underwing refuelling

Biofuel

SG 1" 1x0 Al

Sight Glass, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.

Oasis FM104 Fuel Manifold on Natural Gas powered vehicle

Elaflex Pacific (Australia)

Elaflon PTFE 50

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

ERV-CR 100 (4")

'CR' Rubber Expansion Joint for cold and warm water / ship engine room

Chains K 160, K 160 SS, K 180 L, K 200, K 200 SS, K 260 L, K 300, K 300 SS, K 360, K 360 SS

Connection between coupling and dust cap / plug

ELAFLEX Hamburg

Assembling dispensing hose fitting

Elaflon PTFE 50 with FFX 50 SSE/SS; PCS 25 with AMKC 25 SSE/SS

Universal hoses with PFA coated fixed flange and Camlock fittings. Spannfix / Spannloc stainless steel clamps.

Tank storage: manifold with DDC Dry Disconnect Couplings, TW hose assemblies

SFX 50.16

hose flange; hose tail and swiveling flange of steel, Spannfix clams

MK 80-90 SS; MK coupling stainless steel with bent lever 90°

TW coupling with bent lever: For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

DCC Dry Cryogenic Coupling for LNG

with cap

Vehicle refuelling with LPG (L.P. Gas, Autogas)

ZVG 2 EURO

Rubber Expansion Joint ERV-GS 80.16

YELLOW STEEL expansion joints for petroleum based products, DIN EN fuels up to 50 % aromatic content, cooling water with oily anticorrosion additives, lubrication and hydraulic oil, seawater. Temperature (depending on medium) range - 20° C up to + 90° C, temporarily up to + 100° C. Fire resistant (to ISO 15540) up to 30 min. and 800° C. Electrically dissipative.

KR 50

bend with VK 50 x MK 50, 60°, with VB 50 P dust plug

Unloading Methanol

with FWS composite hose, DDC Dry Disconnect Coupling

Ship bunkering with LNG

CBC Cryogenic Breakaway Coupling from MannTek and hose assembly for cryogenic media

Oasis 'Priority Panel' with ball valves for CNG refuelling

ERV-R ... ZS

"Red Band" Rubber Expansion Joints with limiters

ERV-BR 100.16

BR Rubber Expansion Joint, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products. Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e. g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR.

Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion

Picture courtesy of Macoil International, Gibraltar

Fuel delivery at the petrol station

LTW 75 fuel delivery hose, MKX 80 female TW coupler

Vehicle refuelling with LPG (L.P. Gas, Autogas)

GasGuard GG1 nozzle, Butapal hose

LPG terminal: loading with DGC Dry Gas Couplings
