Aircraft refueller, Dry Aircraft Coupling to ISO 45 for bottom loading

MB 80 SSE

TW dust cap of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.

MannTek DDC-M150, DDC-V150, DDC-V150 F

Elaflon PTFE 50

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

Unloading petroleum products at the service station (road tanker to UST)

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

LNG ship bunkering

DCC 100 Dry Cryogenic Coupling, CBC 100 PERC Cryogenic Breakaway Coupling

Rail tanker unloading of petroleum based products

LTW 75 (hose), MKX 75 ('TW' female coupler with Spannfix clamps), Adapter KWZ x VK 80 (51/2" x 'TW'-male coupler)

Slimline quality dispensing hose for the forecourt

SL 21 red

KWZ x MK 80-32°

Rail car adapter with TW coupler, bent lever

ERV-OR 65.25

ORANGE BAND Rubber Expansion Joint for Liquid Petroleum Gas (LPG) acc. to EN 589. For tank trucks and refuelling stations. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to 100° C. Electrically dissipative.

Hose assemblies for petroleum based products

Yellow Band quality with nozzle, TW coupling, flange connection

Oasis Engineering Ltd, New Zealand (CNG refuelling products)

Production Picture 18

MK 80-2" IG

TW female coupler, brass, with reduced female thread (special type)

Petrol station in Dubai

ZVA Slimline 2 nozzle, SSB 16 Safety Break, Slimline hose assembly

ZVG 2 K (Korea)

front view

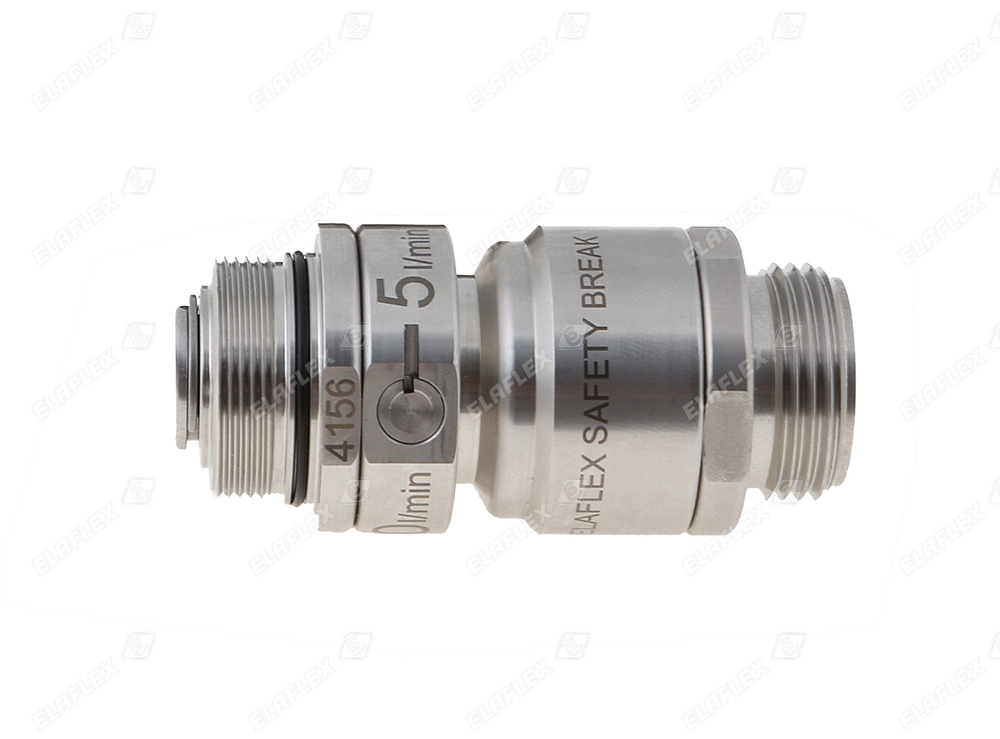

Safety Swivel Break SSB 16 SS of stainless steel f. ZVA HV for AdBlue®

new design

Oasis BV708, 1" ball valves, isolation valves, CNG spheres (tanks)

Fluorflex FXD universal hose assemblies with anti kinking spiral KSS

extremely flexible PTFE hose with maximum bending radius and safety against kinking

Camlock couplings:

stainless steel female and male couplings to EN 14420 - 7

ERV-G Yellow Band rubber expansion joint, installation underneath a road tanker

V 16-3/4"

Male ferrule hose coupling EN 14424, reusable. Slimline 16 hose, blue.

HB 19 ST tar spraying hose

Pressure hose for road construction machines, especially for hot bitumen and heavy heating oil. Temperature range: - 25° C up to + 220° C. Meets EN 13482, Type 2 SB/B (DN 19 and DN 32 analogue).

Offshore FSRU (Floating Regasification Unit), connector for gasoil sludge / seawater

DDC-V 150 F

ZVF 25 for aircraft refuelling

dust cap and ground cable assembly

ROTEX 80.16 ZS 2

Tied Flanges – Type ZS, Tie rods with outer limitation in rubber bushings

Heating oil delivery: HD reel hose, bulk nozzle

ROTEX 80.16

Rubber Expansion Joint suitable for permanent use with hot heating water, cooling water and hot air. Approved according to DIN up to 100° C by 10 bar and up to 110° C by 6 bar. Temperature range (depending on medium) - 40° C up to + 130° C, temporarily up to + 150° C. Electrically dissipative

ERV-G AF

Suitable for piping systems of aviation refuelling or dispensing vehicles in accordance to EN ISO 1825/EI 1529. Suitable for all aviation fuels.

Nozzle boot NB-ZVF 50

for ZVF 50 Oberflügel-Zapfventile

ERV-R

"Red Band" Rubber Expansion Joints; wastewater pump
