DDC Dry Disconnect Couplings for chemicals

Rail tanker loading/unloading

Motorcycle refuelling at the petrol station

ZVA Slimline 2 GR with special short spout

Adapters / couplers for vehicles fighting dangerous goods incidents:

Dry Disconnect Stanag 3756 DDC- M 50 / 65 / 80 SS NOT x VK 50 SS/Vi Hose sided MK coupling can be coupled without tools

DAC-V 65

Aircraft refueller , Dry Aircraft Coupling to ISO 45 for bottom loading; detail

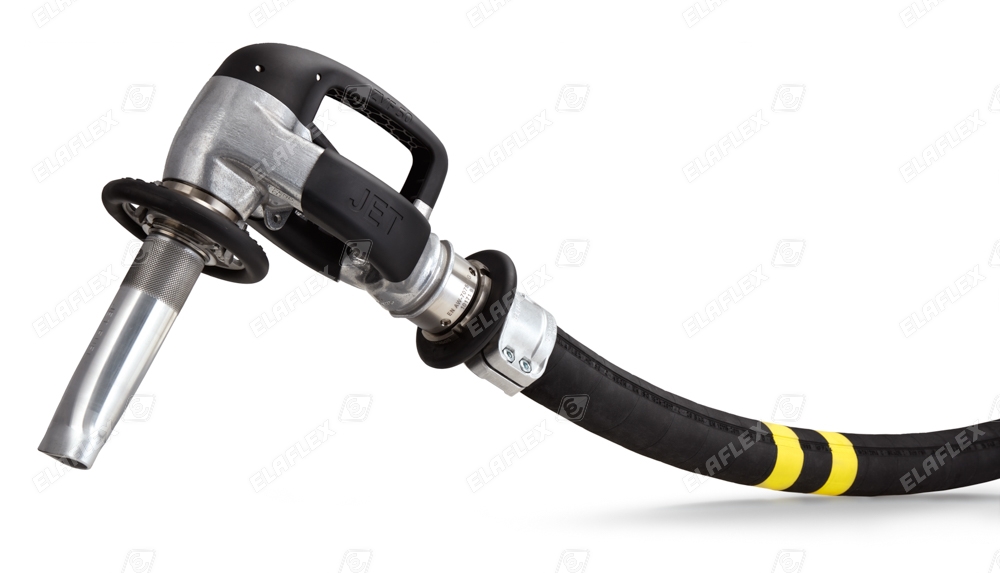

ZVF 50 JET overwing refuelling

with HD-C hose assembly

ELAFLEX Hamburg

Assembling Spannloc hose clamps

Elaflex hoses

SD, PTFE, LPG, TW, FEP, SL

Slimline 21 green

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

Storz Safety Coupling SHK

upon uncoupling, the safety dust plug first falls into holding claws, relasing an eventual pressure within the system. Only then the dust cap can be fully taken off. - increased protection for the operating personnel. Easy to use, no additional pressure release necessary, slim design, does not build up, no freezing up in the dome section.

Ship bunkering loading and unloading, Hose Reels, HD hose, ZV 500

Bunkerboat

Rubber Expansion Joint ERV-BR 80.16

BR Expansion Joints, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products (e. g. carbon-blacks). Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e.g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR

EK 145 Product Badges for ZVA nozzles

Hose Reel spring rewind red, SL 19 black, ZVA Slimline 2 green

AKD-Hy

Coupling seal type AKD for cam locking couplings EN 14420-7. Here: of CSM

COAX Safety Break

CSB 21

Easy Rotating Safety Swivel Break, Type 'ERS'

SSB 16 ERS

Terminal loadingarm

'SBC-C'

Elaflex hoses

HD, TW, LPG, FXD, SL, FEP, CHS, LMS, UTS, PTFE, PCS

SD 38 Pyropal

Steam hose with steel braids for wet saturated steam up to 18 bar (210° C) and hot water up to 120° C. For cold water up to 25 bar. Minimum burst pressure 180 bar (1 : 10 safety factor

MKC 75.80 SS

TW female two-part coupler, stainless steel

Nozzles and hose assemblies for the forecourt

ZVA Slimline 2, ZVA Slimline 2 GR, Slimline hose assemblies

ZVA Slimline 2 without scuffguard: body markings

DDC-K 3" Al ADR with pressure relief

Cap for DDC-V 80
• Meets the ADR requirements
• Enhanced safety and protects the environment
• Easy, user friendly operation

Unloading petroleum products at the service station (road tanker to UST)

LTW hose assembly, MK 80-32° Ms couplers with bent lever. The lever shall always be fully closed for safety reasons. For applications with limited room.

ELAFLEX Hamburg

Stock commisioning system

Road tanker with open hose reel, HD hose assembly, ZV 500 nozzle

Hose with SC 50 SS Spannloc stainless steel clamps - corrosion protection against road salt

Oasis BV701 Ball Valve, with air torque actuator AT101, for CNG

ZV 500 DDC, ZVA 32 DDC, hose assembly with DDC-M coupling

Refuelling of construction site machines from the road tanker: only one hose reel, choose between two nozzles (ZV 500 for bulk, ZVA 32 automatic nozzle up to 200 l/min)

Oasis HC308 Ultra Fast Quick Fill Coupler for CNG

ELAFLEX Hamburg, stock
