Section 5: Nozzles + Spare Parts
COAX Hose Assemblies, non-reattacheable, Page GR 11-GR 12
- Type COAX 21/8
Coaxial hose assembly for dispensers with active vapour recovery (Stage II)
Update: 06.2021
COAX Hose Accessories for self-assembly, Page GR 13-GR 14
- Type CONTI "C" (Glossline coloured petrol pump hoses),
- Type CONTI "SL" (Slimline petrol pump hose, black),
- Type GRS 8 PU (vapour hose DN 8),
- V 21- 34/2 ../6 (hose fittings, reusable),
- Type KS 21 (anti-kinking sleeve),
- Type CS 21 (colour sleeve),
- EK 754 / EK 755 (vapour hose tails DN 8),
- GSS 11,5 (vapour hose clamp)
COAX Accessories for Active Vapour Recovery, Page GR 15
- Type CSB 21 Coax Safety Break,
- Type COAX KR 30 / COAX double swivel 45,
- Type ZAF splitter
Product Badges for ZVA nozzles - Overlook of Available Designs, Page 512a
- Type EK 145

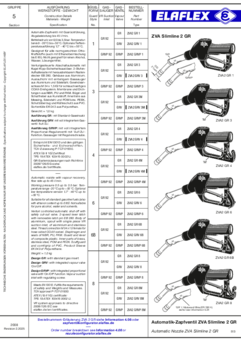

ZVA Slimline 2 GR Automatic Nozzle for Active Vapour Recovery Stage II, Page 513-516
- Type ZVA Slimline 2 GR
For all standard gasoline fuels, and E85.
Version:
'GR' = Standard, without vapour valve
'GRV' = with vapour valve "On/Off"
'GRVP' = with vapour proportional valve
OLD - ZVA 200 GR Automatic Nozzle for Active Vapour Recovery Stage II, Page 515‑516
- Type ZVA 200 GR
OLD - Production until 12.2008
For all standard gasoline fuels, and E85.
Designs:
'GR' = Standard, without vapour valve
'GRV 3' with vapour valve "On/Off"
'GRVP' = with vapour proportional valve
ZVA Slimline 2 Automatic Nozzle, Page 517-520
- Type ZVA Slimline 2
For gasoline, diesel, biodiesel, heating oil, and E85.
Accessories
Update: 03.2021
OLD - ZVA Slimline Automatic Nozzle, Page 517,518,519,520
- Type ZVA Slimline
OLD - Production until 9.2008
For gasoline, diesel, heating oil, and E85.
Accessories
Update: 09.2006

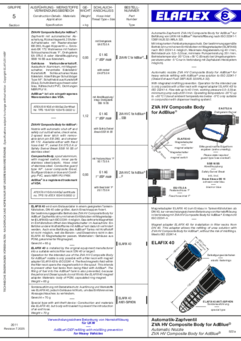

AdBlue® Refilling, Page 521a-521d
ZVA AdBlue HV
- for heavy vehicle refilling with AdBlue® urea solution
- either with swivel / with fixed hose inlet/ or Safety Swivel Break SSB 16 SS
- ELAFIX 40 Magnet Adapter / ELAFIX 40 ANTI-SIPHON for the installation into AdBlue vehicle filler necks
ZVA AdBlue LV
- for refilling with AdBlue® urea solution of light vehicles < 3,5 t
- preferably chosen with Swivel EA 075 LV or Safety Swivel Break SSB 16 LV
- dispensing only possible in conjunction with filling points to ISO 22241-5
Corrosion Resistant Automatic Nozzles, Page 523‑524
- Type ZVA-RG (red bronze),
- Type ZVA-GBZ (bronze),
- Type ZVA Slimline ... TD
Reverse Side: ZVA for Solvents / ZVA Chemical Resistance Chart
Update: 05.2020
ZVA 25 HiFlo-Automatic Nozzle 1", Page 525-526
- Type ZVA 25
Hiflo automatic nozzle, flow rate up to 140 litres/min.
Accessories (SSB 25 reusable Safety Swivel Break)
Update: 12.2021
ZVA 32 Hiflo-Automatic Nozzle 1 1/4", Page 529‑530
- Type ZVA 32
Hiflo automatic nozzle, flow rate up to 200 litres/min.
Accessories
Update: 11.2024
Sight Glasses for Nozzles, Page 531‑532
- Types SG 1" Al,
- SG 1" Al Propeller,
- SG-COAX Al
All sight glasses meet EN 13617-1.
Update: 12.2022
Safety Breaks, Page 533a-d
Self-closing, reusable Nozzle Breaks, Hose Breaks and Pump Breaks. Designed to protect dispenser, hose assembly and car against damage caused by drive-off incidents.
- Type SSB (Safety Swivel Breaks)
- Type CSB (COAX Safety Breaks)
- Type PSB (Pump Safety Breaks)
- Type SSB .. DC (Double Closing Safety Breaks)
- Special Types with integrated sight glass
- Type ARK 19 (for LPG)
- Type SB-LNG (for LNG)
- Type SB-CNG (for CNG)
ZV 19 · Dry Hose Delivery Nozzle ZL, Page 535‑536
- Type ZV 19
Dispensing nozzle, without automatic shut-off (function), flow rate up to 100 litres/min., for solvents and water
- Type ZL
Dry hose delivery nozzle made of stainless steel
Update: 11.2022
Manual Nozzles ZV 25 + ZVF 25 Size DN 25, Page 537‑538
- Type ZV 25
Hiflo dispensing nozzle, without automatic shut-off (function), flow rate up to 140 litres/min.
- Type ZVF 25
Special type for aircraft refuelling
Update: 10.2019

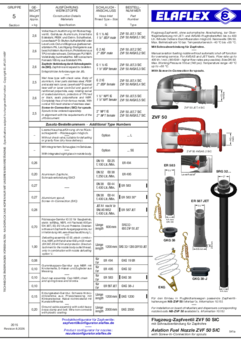

Aviation Fuel Nozzle ZVF 50, Page 541a‑541d
- Type ZVF 50 (successor of ZVF 40)
- Aviation fuelling nozzle, without automatic shut-off (function), for overwing service, flow rate up to 400 litres/min.
- Accessories
Bulk Delivery Nozzles Size 32-50 · Hose Swivels "ZV 400", "ZV 500", "DS", Page 543‑544
- Types ZV 400 / ZV 500
High performance dispensing nozzles with fixed spout, without automatic shut-off (function), flow rate up to 650 litres/min.,
- Type DS
Swivel hose inlet
Update: 06.2016
Bulk Delivery Nozzles ZV 400/500 with TW Coupling · Spouts with TW Coupling, Page 549‑550
- Type ZV 400
- Type ZV 500
High performance dispensing nozzles, without automatic shut-off (function), with MK coupling, flow rate up to 750 litres/min.,
Spouts with VK coupling
Update: 10.2021
Ball Valve Bulk Delivery Nozzle ZH 50, Page 553‑554
- Type ZH 50
High performance dispensing nozzle, without automatic shut-off (function), for Diesel, heating oil, viscous oil.
Special type 'E 85' also for fuel/ethanol mix.

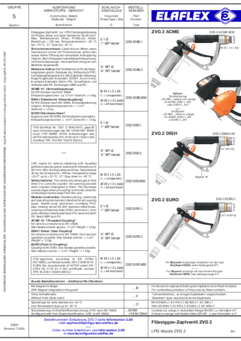

LPG Nozzle ZVG 2, Safety Break ARK 19, Page 561‑564
- Types ZVG 2 ACME, ZVG 2 DISH, ZVG 2 EURO.
LPG nozzles for vehicle refuelling with liquefied petroleum gas (propane, butane and mixtures) up to 50 l/min.
- Type ARK 19 reconnectable Safety Break DN 19 for LPG
- Type NB-LPG, Nozzle Boot for ZVG 1, ZVG 2 and LPG nozzles of other manufacturers
L.P. Gas Nozzles GasGuard & ZVG 2 UL, Page 567‑574
- Types GG1 ACME
- Types GG20 ACME
- Type GG30 BAYO
- Type ZVG 2 EURO UL
- Type ZVG 2 K
LPG nozzles for vehicle refuelling with liquefied petroleum gas (propane, butane and mixtures) up to 50 l/min.
Update: 11.2022Catalogue Pages by Category
COAX Hose Assemblies and COAX Accessories
- COAX Hose Assemblies, non-reattacheable
- COAX Hose Accessories for self-assembly
- COAX Accessories for Active Vapour Recovery
ZVA
- Product Badge - Overlook of Available Designs
- ZVA Slimline 2 GR Automatic Nozzle for Active Vapour Recovery Stage II
- OLD - ZVA 200 GR Automatic Nozzle for Active Vapour Recovery Stage II
- ZVA Slimline 2 Automatic Nozzle
- OLD - ZVA Slimline Automatic Nozzle
- ZVA AdBlue HV and ZVA AdBlue LV
- Corrosion Resistant Automatic Nozzles
- ZVA 25 HiFlo-Automatic Nozzle 1"
- ZVA 32 Hiflo-Automatic Nozzle 1 1/4"
ZVA Accessories
- Sight Glasses for Nozzles
- Safety Breaks
Nozzles ZV, ZL nozzles without automatic shut-off
- ZV 19 · Dry Hose Delivery Nozzle ZL
- Nozzles ZV 25 + ZVF 25 Size DN 25, without automatic shut-off (function)
- Aviation Fuel Nozzle ZVF 50
- Bulk Delivery Nozzles Size 32-50 · Hose Swivels "ZV 400", "ZV 500", "DS"
- Bulk Delivery Nozzles ZV 400/500 with TW Coupling
- Ball Valve Bulk Delivery Nozzle ZH 50
LPG Nozzles & Accessories
- LPG Nozzle ZVG 2, Safety Break ARK 19
- L.P. Gas Nozzles GasGuard, ZVG 2 UL & ZVG 2 K
Quality by Design for the Forecourt ...
If you are a motorist it is very likely that you already had in hand one of our products: the internationally renown automatic nozzle ZVA for service stations.
Oil companies, original equipment manufacturers and service companies favour user-friendly, durable and innovative nozzles with high flow rates.
Due to its modular system all major parts can be replaced. ZVA are suitable for every petrol dispenser, every hose and every vehicle filler neck. Additional retrofitting in the field is trouble free.
The modular construction method of the ZVA enables economical maintenance and repair work. Simple repairs can be done on-site by service company personnell. In the workshop, the ZVA nozzle can be stripped down and put back together in minutes. With one or two intermittend repairs, a ZVA will regularly reach a service life of ten years and more.
These factors result in the fact that our nozzles - inspite of their cost price level being above the average - show the lowest Total Cost of Ownership for our customers. In this calculation also our Slimline standard dispensing hoses, COAX dispensing hoses and accessories like Safety Breaks and Sight Glasses can be included.
Besides our most important nozzles, ZVA Slimline 2 and ZVA Slimline 2 GR, you will find the following forecourt nozzles and components in catalogue section 5 :
- COAX hose assemblies for active vapour recovery
- Product Badges EK 145 ( try our new BadgeSelector for a quick choice! )
- ZVA 25, HiFlo for truck refuelling
- ZVA Slimline AdBlue for the filling of trucks with urea solution (DEF, ARLA 32, AUS 32)
- ZVG and GasGuard nozzles for Autogas LPG
... and for many other applications.
Alle fluid and gaseous media can be dispensed by a nozzle.
ELAFLEX HIBY offers suitable nozzles for most industrial applications: heating oil, lubricating oil, chemicals, foodstuffs, alcohols, L.P. Gas :
- ZVA 32, HiFlo automatic nozzle, up to 200 l/min
- ZVA Slimline 2, ZVA 25, ZVA 32 in special versions for aircraft refuelling
- ZVF 25 and ZVF 40 (new: ZVF 50), non automatic, for aircraft refuelling
- ZVA Slimline, ZVA 25 for chemicals, solvents and foodstuffs/alcohols, ZVA 25 GR also with vapour recovery, for solvents
- ZV 19, ZV 25 - non automatic, for flowrates up to 140 l/min
- ZV 400, ZV 500, ZH 50: manual HiFlo nozzles up to 750 l/min, for road tanker delivery with heating oil, Diesel etc.; special versions of ZV 400/500 or chemicals and solvents
Please take advantage of the experience of our sales team. Alternatively, for an easy and quick choice: use our Nozzle Configurator!
