LNG Refuelling
N-LNG Nozzle, pull back handles to uncouple
MKC 75 SS
TW female one-part coupler, stainless steel
ZV 500 DDC, ZVA 32 DDC, hose assembly with DDC-M coupling
Refuelling of construction site machines from the road tanker: only one hose reel, choose between two nozzles (ZV 500 for bulk, ZVA 32 automatic nozzle up to 200 l/min)
Functioning principle of MannTek DDC Dry Disconnect Couplings
closed - open
Universal hose assembly UTS 50 with VC 50 SS / SS
ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid
and Sight Glass SG 1 Al / Slimline dispensing hose
Connection road tanker to trailer: LTW hose assembly, DDC Dry Disconnect Coupling
Fluorline EFL 16
Universal pump hose DN 16 for chemicals, petroleum based products, for propane, butane and other L.P. gases, as well as solvents. Ideal for highly sensitive media such as AdBlue® urea solution. Temperature range -40 °C to +100 °C. Burst pressure > 64 bar.
ERV-G 80.TW
Yellow Band rubber expansion joint with TW flanges
Rail tanker unloading of petroleum based products
Plant side: FWS PP St/St composite hoses, SG 3" Sight Glasses
Rail tanker unloading of petroleum based products
LTW hose assemblies, TW couplings
ELAFLEX Hamburg
Hose assemblies, marking after testing
ERV-G 1000, ERV-BR 300
GasGuard GG11R
The GasGuard GG11 Back-Check Valve (GG11R: with additional release screw) should be standard equipment for any LPGas road tanker operator. It is used in conjunction with LPGas bulk refueling nozzles to contain leaks at storage tank fill points. If the fill point proves to be leaking when removing the nozzle it can be left on the tank until corrective action is taken. The driver can move to the next fill point without delay.
ELAFLEX Hamburg
Assembling ERV large DN
ZVA Slimline 2 GR, ZVA Slimline 2
Petrol station Germany
Unloading LNG road tanker
DCC Dry Cryogenic Coupling
Road tanker reel with HD 50 hose assembly, ZV 500 nozzle
coupled PTFE hose assemblies, MK 50 SS, Adapter VK 50 SS x VK 50 SS, Spannloc stainless steel clamps
Customer protected special design ZVA Slimline 2 nozzle
DCC Dry Cryogenic Coupling for LNG
Coupling process
ELAFLEX Hamburg
Main building / entrance
Production plastic precision parts
Camlock cam locking couplings:
Attachment AMB dust cap with chain to Spannfix clamps (service free of charge)
LPG 16 dispensing hoses for L.P. Gas (Autogas)
black or orange
ZVF 50 UL 91 / green
Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure PN 10 (140 psi). Temperature range - 40° C up to + 55° C.
AdBlue® urea solution, road tanker:
DDC-M 50 Dry Disconnect Coupling, UTL 50 hose assembly on reel
ELAFLEX Hamburg
Manufacturing bronze corrugated pipes
Flame resistance test hose

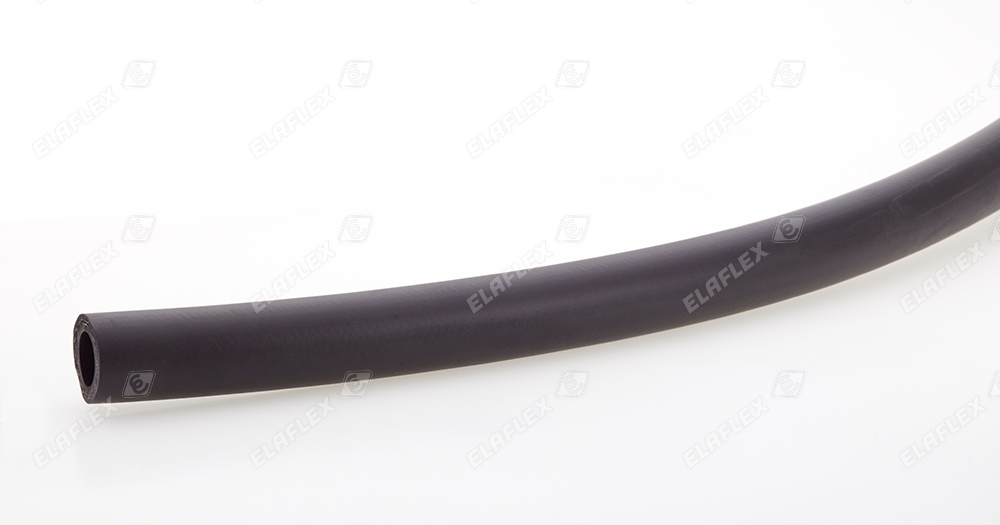

LMD 25 Blue Band solvent hose
without helix
