Female hose coupling MC 38-S60 SS (with Spannfix clamps) and LMS solvent hose. Direct connection of a hose assembly to the IBC.

Type PCS 38 (Polypal Clean DN 38 mm)

Universal hose assembly for vehicles fighting dangerous goods incidents:

PTFE 50, length 5 mtr., assembled with MKX 50 SS/Vi SS, VKX 50 SS/Vi SS

ELAFLEX Hamburg

Assembling dispensing hose fitting

DCC Dry Cryogenic Coupling for LNG

Coupling process

Equipment truck for dangerous goods accidents, Elaflon PTFE universal hose assembly, DDC Dry Disconnect Coupling

Slimline quality dispensing hoses for the forecourt

black - yellow - red - blue - green - special colours

Group picture

TW 100, DDC-M100 4", Hose Reel VR Spring Rewind System, ZVA Slimline 2 GR, ERV-G 1000, ERV-BR 300

LNG ship bunkering

DCC 100 Dry Cryogenic Coupling, CBC 100 PERC Cryogenic Breakaway Coupling

Offshore FSRU (Floating Regasification Unit), Unloading Gasoil Sludge

TW hose assemblies, reels

MKC 75.80 SS

TW female two-part coupler, stainless steel

ERV-G

Pump station for fuels

Elaflon PTFE 50

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

VB 80 SSE

TW dust plug of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.

SG 1" 1x0 Al

Sight Glass, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.

Elaflex hoses

SD, PTFE, LPG, TW, FEP, SL

TW connecting hoses

airport depot, gantry

V 16-1" cr

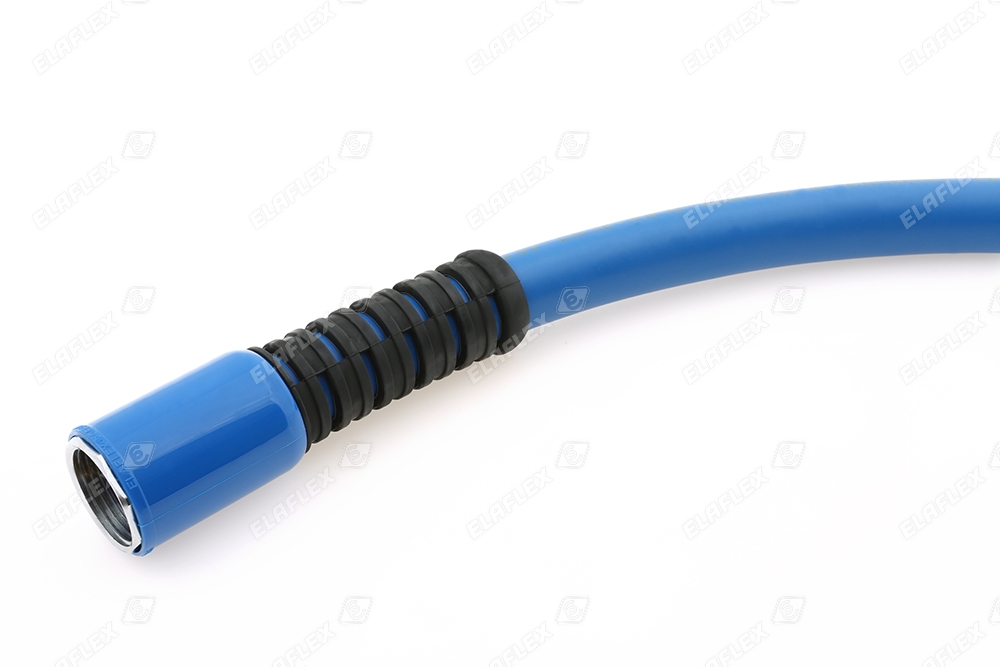

Male ferrule hose coupling EN 14424, reusable. Slimline 16 hose, blue.

ERV-GS

"Yellow Steel" Rubber Expansion Joints / ship engine room of a ferry

Sideway storage of hose assemblies, tank truck for petrol station delivery

LG 3" hose assembly for gravity discharge, LG 2" hose assembly for vapour balance

ERV-G Yellow Band rubber expansion joints, manhole of a petrol station

Flame resistance test hose

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

and Slimline dispensing hose, yellow

Tank container filling coupling: MK 80-32 SS with VB 80 SS

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

Rubber Expansion Joint ERV-BR 80.16

BR Expansion Joints, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products (e. g. carbon-blacks). Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e.g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR

VSR vacuum support ring for ERV Rubber Expansion Joints

to increase vacuum resistance of a chosen ERV type. Open ring of stainless steel 1.4571

Elaflex hose assemblies, nozzles and Rubber Expansion Joints for the chemical industry

Oasis BV708, 1" ball valve / isolation valve, CNG fill post for trailer loading with HC200 Quick Coupler

Oasis HC308 Ultra Fast Quick Fill Coupler for CNG
