Media Library / Images

VX 50-2" NPT SS

Male hose coupling 2" NPT of stainless steel with Spannfix clamp

ZVA Slimline 2

with Sight Glass

Stainless steel Hose Reel with pneumatic rewind system, HD 50

ELAPHARM Type EPH-OHM G

electrically conductive 'OHM/T', with light grey cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, black PTFE liner.

DDC-M 100, TW hose assembly

Rail tanker bottom loading with Dry Disconnect Coupling

Hose assembly TW 63 with SFX 63

TW hose with helix, 'TW' flange with hose tail and Spannfix clamps of aluminium

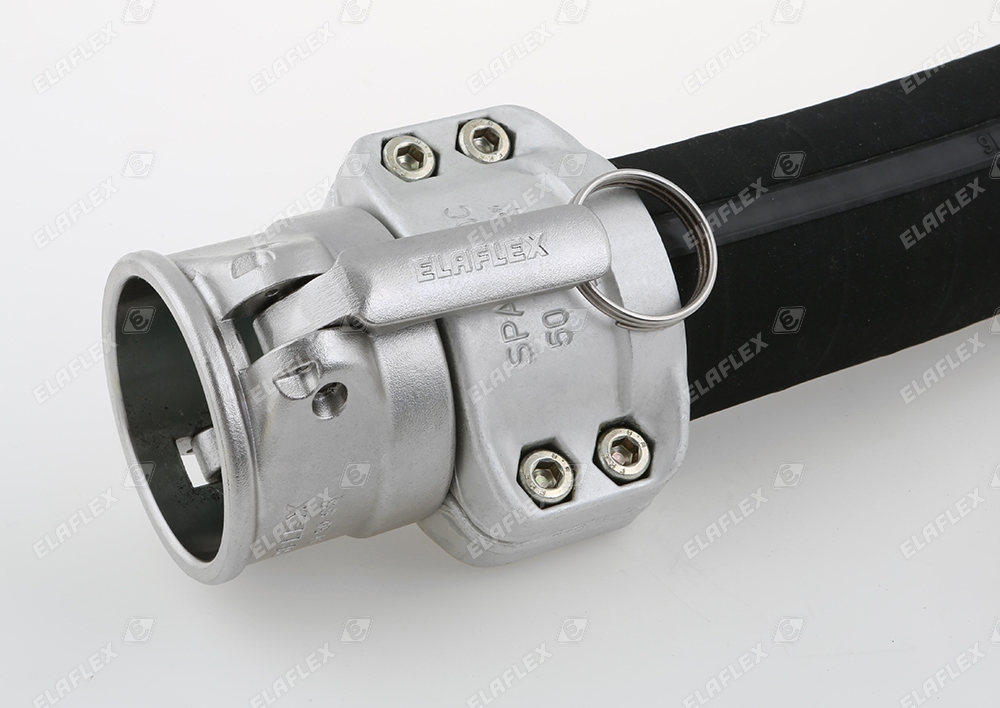

Elaflex Cam and Groove Couplings ('Camlock'): AMKX 50 EASY

EASYLOC stainless steel coupler to EN 14420 - 7, with lever arrest. Picture shows the version as one-piece coupler with integrated hose tail and Spannfix stainless steel clamp

Feel the difference: ZVA SLIMLINE 2 + ZVA SLIMLINE 2 GR

Petrol station nozzles with and without vapour recovery; premium quality from Elaflex.

Slimline 16 red

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.

DEC – Dry Evotek Couplings:

dry disconnect couplings for the chemical industry.
• Low connecting forces even against pressure
• Ergonomic handle (DN40 and bigger)
• Good transmission ratio in the cam curve
• Wide range of chemical resistance due to selection of high quality materials
• Minimized spillage during decoupling

ERV-G Yellow Band rubber expansion joints, pumping system for oil emulsion

Slimline 16 black

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.

ZVA 25 with red scuffguard and Slimline hose assembly

HIFLO-Automatic nozzle DN 25 (1"), flowrate up to 140 litres/min.

ZVA Slimline 2 TMV nozzle for Diesel with DRIP STOP spout

MC 100 SS female threaded hose coupling with Spannloc clamps

with universal hose UTL 100

ZVF 50 UL 91 / green

Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure PN 10 (140 psi). Temperature range - 40° C up to + 55° C.

Boat refuelling Australia

ZVA Slimline 2, Slimline hose assembly

UTL 50 universal chemical hose assembly with KSS anti-kinking-spiral

and DDC Dry Disconnect Coupling

AMKX 50 Ms

'Camlock' brass steel coupler to EN 14420 - 7 with hose tail and Spannfix clamps

Airfield fixinstallation: Hose Reels JET, AVGAS

Type HD-C, aviation hose, ZVA 32

RS 4 x 51/2 SS

Reducer Female/Male

Coax hose assembly, section view

ELAFLEX Hamburg, narrow aisle stock for small parts

Unloading chemical road tanker

UTS hose assembly

Offset UST filling point, LTW hose assemblies with TW couplings

TS 80 lockable cap vor VK 80 couplings

Hose trolleys, HD 100 C

Type HD-C, aviation hose, Aljac bonding reel und Lanyard reel

Slimline 16 green

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.

MK 80-90 SS; MK coupling stainless steel with bent lever 90°

TW coupling with bent lever: For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

MK 80-2" IG

TW female coupler, brass, with reduced female thread (special type)
